Khoom Description

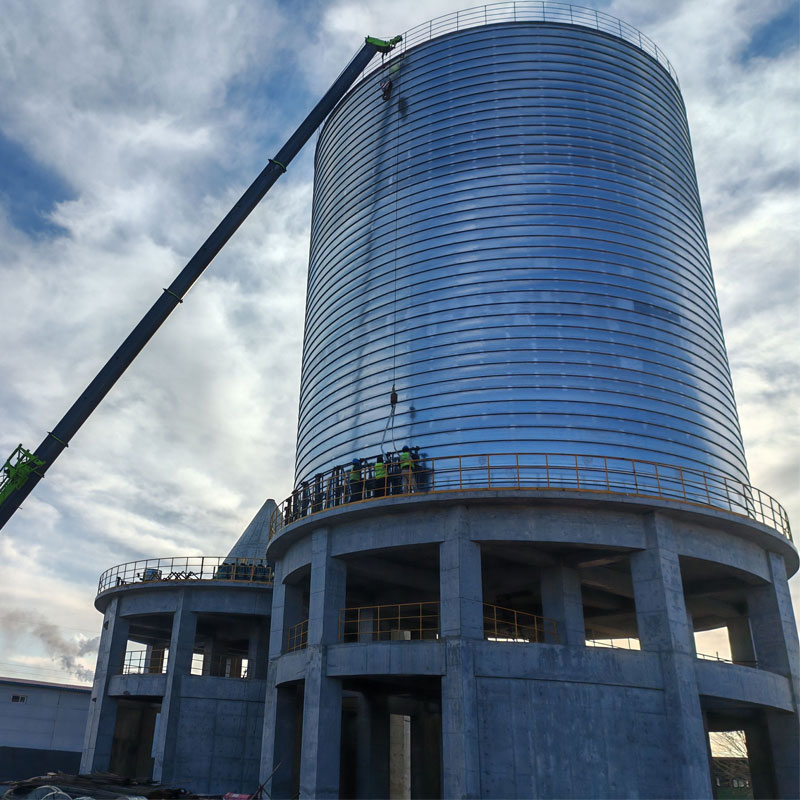

Covkauv steel siloyog lub chaw cia khoom niaj hnub tsim los ntawm -site kauv txoj kev siv tshuab. Los ntawm tsis tu ncua dov cov ntawv hlau, nws tsim cov qauv uas tsis muaj kev sib hloov welds, muab lub zog siab, zoo sealing, thiab kev tsim kho sai.

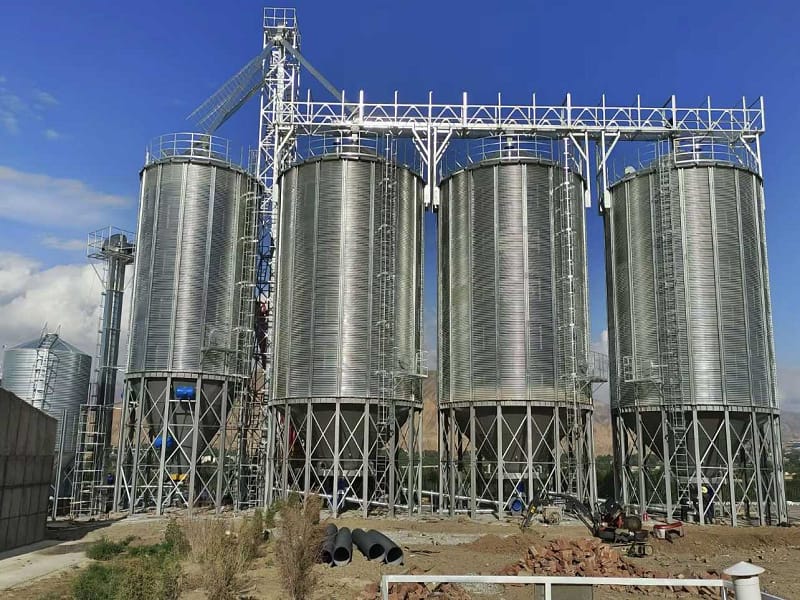

product-800-600

Core Parameters

Parameter	Ntau yam
Muaj peev xwm	50T – 50,000T
Txoj kab uas hla	3m – 60m
Khoom siv	Galvanized hlau / Stainless hlau
Phaj Thickness	2-6 hli
Kev Pabcuam Lub Neej	25-30 xyoo
Cua & Av qeeg Resistance	Qib 12 Cua / Magnitude 8 Av qeeg

Tau txais cov ncauj lus kom ntxaws specifications

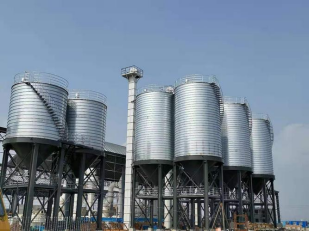

Qhov chaw tsim kho

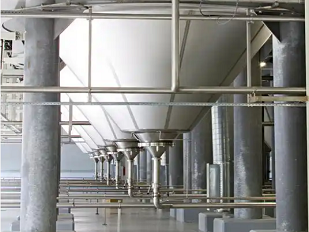

Construction site of a spiral steel silo

Cov Ntsiab Cai

Kauv Interlocking Structure

Kauv steel silos yog tsim los siv cov cuab yeej tshwj xeeb uas txuas ntxiv dov cov nplooj ntawv steel los tsim cov kauv reinforcing ribs 30-40 mm dav. Cov tav no yog kwv yees li tsib npaug ntau dua li cov khoom siv hauv paus, txhim kho tag nrho cov load-cov kabmob muaj peev xwm.

Tsis muaj vuam → Tshem tawm cov txheej txheem tsis muaj zog

Tus kheej -locking qauv → Txhim kho stability

Kev sib txuas txuas ntxiv → Ntau lub zog sib xws

Piv rau cov tsoos welded silos: Cov qauv siv zog yog nce ntau dua 30%

Qhov Zoo Tshaj Plaws

Cov qauv muaj zog, kev nyab xeeb siab

Lub thickness ntawm cov kauv seams yog kwv yees li tsib npaug ntawm cov thawj steel phaj, tsim ntsug thiab ncig stiffeners uas muab kev tiv thaiv zoo heev rau seismic, cua, thiab daus loads. Lub kauv steel silo nta tsis muaj welds lossis bolt qhov, kom ntseeg tau zoo ntawm cov qauv kev ntseeg siab thiab ua haujlwm rau deformation thiab to.

Zoo heev Airtightness

Nrog rau kev sib txuas txuas txuas txuas ntxiv thiab cov pa tawm ntawm cov pa tawm tsawg dua lossis sib npaug li 0.1%, cov silos ua tau raws li qhov yuav tsum tau ua rau cov nplej fumigation thiab cia nrog inert gases, kom ntseeg tau tias muaj txiaj ntsig zoo thiab ua kom tsis muaj menyuam.

Kev tsim kho sai

Ntawm -site mechanical dov tso cai rau ib lub silo (tsawg dua lossis sib npaug li 5,000 tons) ua kom tiav hauv 7-15 hnub xwb-5-8 npaug sai dua li cov pob zeb ua pob zeb.

Lub teeb (kwv yees li 1/6 qhov hnyav ntawm lub pob zeb pob zeb ntawm tib lub peev xwm), ua rau cov nqi qis dua . 15%-20% pheej yig dua li cov welded silos ntawm tib lub peev xwm.

Compact hneev taw thiab siv qhov chaw siab

Kev hloov kho ntawm silo txoj kab uas hla thiab qhov siab; Qhov tsawg kawg nkaus qhov sib nrug ntawm tsuas yog 500 hli tso cai rau kev sib cog lus, txuag av.

Daim ntawv thov

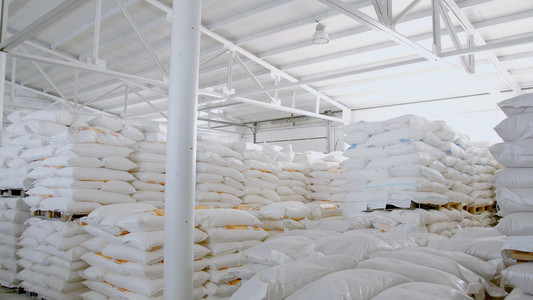

Kev lag luam nplej

Spiral steel silos tuaj yeem siv rau hauv cov khoom lag luam nplej, cov hmoov nplej, nplej mills, breweries, thiab lwm qhov chaw khaws cov nplej, pob kws, nplej, taum pauv, thiab lwm yam nplej.

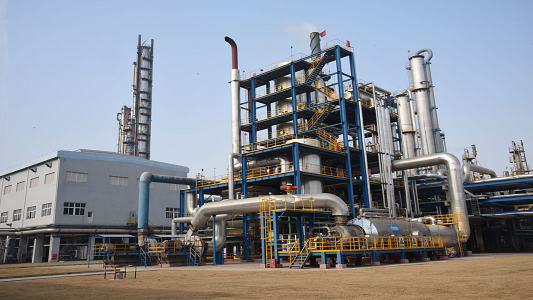

Cov Khoom Siv Hauv Tsev lossis Cement Kev Lag Luam

Cement nroj tsuag, kev sib tsoo, thiab cov chaw sib tov siv cov silos khaws cov hmoov nplej xws li cov cement, ya tshauv, slag hmoov, thiab limestone hmoov.

Loj steel silos zoo tiv thaiv ya raws thiab caking, nrog ib tug residual paug tus nqi ntawm<0.2%.

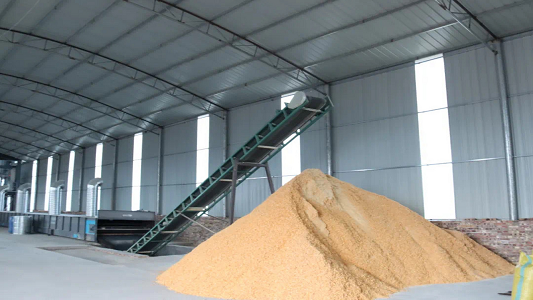

Pub thiab Roj Kev Lag Luam

Pub mills thiab roj mills siv lawv los khaws cov ntaub ntawv raw thiab cov khoom tiav xws li pob kws, taum noj mov, bran, thiab rapeseed, muab ib puag ncig kaw uas tiv thaiv kab mob thiab oxidation.

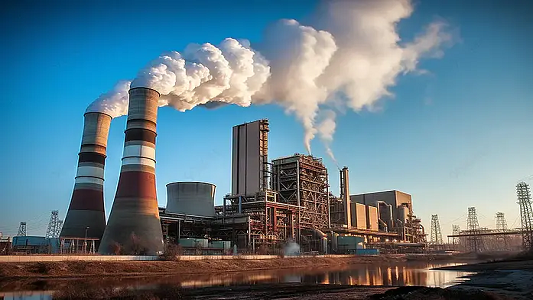

Tshuaj thiab Environmental Protection Industry

Cov nroj tsuag tshuaj, chaw tsim tshuaj, thiab cov hmoov txhuv nplej siab siv los khaws cov pob kws hmoov txhuv nplej siab, tshuaj hmoov, tshuaj ntxiv, thiab lwm yam ntaub ntawv, ua tau raws li cov zaub mov noj -qib cov qauv kev tu cev thiab tiv thaiv kev sib kis.
