Khoom Description

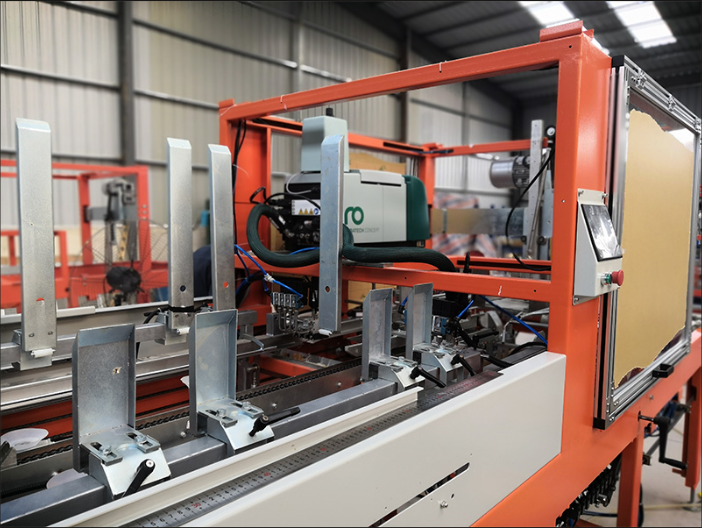

Lub tshuab ua lub thawv tsis siv neeg (tseem hu ua lub thawv tsis siv neeg lub thawv qhib lossis lub thawv tsis siv neeg sib sau thiab hauv qab-} sealing tshuab) yog cov txheej txheem ntim khoom ntim uas sib xyaw ua ke tsis siv neeg lub thawv pub, qhib, tsim, hauv qab folding, thiab hauv qab sealing rau hauv ib chav tsev. Los ntawm cov khoom siv tshuab, pneumatic systems, thiab PLC ntse tswj, nws cia li qhib, erects, folds hauv qab, thiab ntsaws ruaj ruaj - stacked corrugated cartons, hloov cov tsoos phau ntawv qhib thiab hauv qab - txheej txheem folding. Qhov no ua tiav kev ua haujlwm tsis tu ncua, txuas ntxiv, thiab ua haujlwm tau zoo nyob rau pem hauv ntej- txheej txheem ntim khoom kawg, ua rau nws yog ib qho tseem ceeb ntawm cov khoom siv rau cov kab ntim khoom hauv niaj hnub logistics, e- kev lag luam, thiab kev tsim khoom lag luam.
Cov cuab yeej ua haujlwm thiab kev ua haujlwm
Tsis Siv Neeg Box Suction: Cov thawv tiaj tus tau muab tso rau hauv cov khoom siv lub hopper, qhov twg lub tshuab nqus tsev nqus tau txais cov khoom ntim ib leeg, kom tsis txhob muaj ob qho khoom los yog jams.
Tsis Siv Neeg Lub Thawv Qhib thiab Tsim: Tom qab khaws, lub thawv yuav qhib, tsim, thiab muab tso rau ntawm lub tshuab ua kom tiav cov txheej txheem tsim lub thawv.
Tsis Siv Neeg Hauv Qab Folding: Lub tshuab cia li folds pem hauv ntej, nraub qaum, sab laug, thiab sab xis hauv qab ntawm lub thawv yam tsis muaj kev pab cuam, xyuas kom zoo zoo thiab ruaj khov folds.
Tsis Siv Neeg Hauv Qab Sealing: Hauv qab yog kaw siv daim kab xev (tus qauv) lossis kub yaj nplaum nplaum (yeem), ua rau muaj kev ruaj ntseg, ruaj khov uas yuav tsis tuaj yeem xoob.
Tsis Siv Neeg Conveyor Discharge: Cartons uas tau tsim thiab kaw tau raug xa mus rau qhov chaw nres tsheb tom ntej, npaj ncaj qha mus rau kev thauj khoom, sib khi, thiab cov txheej txheem bundling.
Cov Qauv Txheej Txheem
Main Ncej: hmoov-coated carbon steel / stainless hlau lub cev, ruaj khov thiab ruaj khov, ua kom ruaj khov.
Cia Hopper: Tuav kom muaj ntau ntau ntawm cov thawv tiaj tus, muab kev pub noj tsis siv neeg thiab tsis muaj kev cuam tshuam ntxiv.
Cartons Pick-up Mechanism: Lub tshuab nqus tsev nqus cov khob + lub tog raj kheej-tsav, ua kom ruaj khov thiab txhim khu kev qha thawv.
Kev tsim thiab hauv qab-Folding Mechanism: Kev sib txuas, cam, thiab cov qauv qhia kom paub meej lub thawv ntawv.
Conveyor System: Lub cev muaj zog + saw + conveyor siv, kom ntseeg tau tias kev ua haujlwm du thiab kho tau nrawm.
Hluav taws xob tswj System: PLC maub los + touchscreen, muab kev ua haujlwm yooj yim thiab pom qhov tsis pom kev.
Pneumatic System: Lub tog raj kheej, solenoid li qub, thiab siab - tswj cov lim dej, ua kom muaj kev ua haujlwm zoo thiab tsis muaj suab nrov.
Cov cuab yeej tiv thaiv kev nyab xeeb: Kev hloov pauv thaum muaj xwm txheej ceev, lub tswb tsis raug, thiab kev tiv thaiv qhov rooj ruaj ntseg, ua kom muaj kev nyab xeeb dua.
Kev ua haujlwm nta
Kev Ua Haujlwm Zoo Tshaj Plaws: Ib qho - khawm pib rau kev ua haujlwm tsis siv neeg txuas ntxiv; tsis muaj phau ntawv qhib lub thawv, hauv qab folding, los yog gluing yuav tsum tau, txuag nqi zog tseem ceeb.
High Forming Efficiency: Cov qauv qauv txheej txheem 10–25 lub thawv ib feeb, thaum cov qauv siab -ceev ceev tuaj yeem ncav cuag 30 lub thawv ib feeb- deb tshaj li kev ua haujlwm ntawm phau ntawv.
Daim ntawv thov dav: Txhawb 3-ply thiab 5-ply corrugated thawv hauv ntau qhov ntau thiab tsawg; kev kho yog yooj yim thiab ceev.
Kev ua haujlwm ruaj khov thiab qis qis qis: tus qauv tsim qauv, cov khoom tseem ceeb ruaj khov, thiab kev saib xyuas yooj yim ua rau nws tsim nyog rau kev tsim khoom mus ntev -.
Kev ua haujlwm yooj yim: kov npo tswj; Kev hloov kho me me yuav tsum tsis muaj cov cuab yeej, thiab hloov cov ntsiab lus tsuas yog siv 1-3 feeb xwb.
Compact Footprint thiab yooj yim kev koom ua ke rau hauv cov kab ntau lawm: tuaj yeem siv los ua ib qho chaw nyob ib leeg lossis seamlessly integrated nrog cov ntaub ntawv packers, case sealers, strapping machines, thiab ntau lawm kab.
Muaj zog thiab zoo nkauj hauv qab Sealing: Daim kab xev yog nruab nrab, tiaj tus, thiab tsis muaj curling npoo; hauv qab ntawm lub thawv yog ruaj khov thiab tiv taus kev puas tsuaj.
Daim ntawv thov
Cov Cartons uas tsim nyog: Standard corrugated cartons, xa ntawv thawv, xa khoom xa tuaj, e- cov thawv lag luam, thiab cov thawv ntim khoom lag luam.
Tsim nyog Industries:
E- kev lag luam warehousing,》logistics
Khoom noj khoom haus, dej haus, thiab khoom siv txhua hnub
Pharmaceuticals, Health Supplements, thiab Medical Devices
Electronics, Hardware, Toys, thiab Apparel
Tshuaj pleev ib ce, Phau Ntawv, Auto Parts, Khoom Siv Hauv Tsev, thiab lwm yam khoom lag luam siab - ntim ntim
Daim ntawv thov
| Kev Ua Haujlwm Zoo: | 12-18boxes / feeb | ||||
|
Tau tshaj daim kab xev: |
48/60/72 hli | ||||
| Fais fab mov: | 220V 50Hz | ||||
| Kev siv fais fab: | Kwv yees li . 1.2kW | ||||
| Cua Supply: | 0.5-0.7MPa | ||||
| Tshuab Luj: | Kwv yees li . 350-450kg | ||||
| Haum Carton Dimensions: | L200-500mm × W150-350mm × H150-380mm | ||||
Summary of Equipment Advantages
Kev txuag nyiaj ua haujlwm: Ib lub tshuab tuaj yeem hloov 3-6 phau ntawv lub thawv- qhib cov neeg ua haujlwm
Ua kom muaj txiaj ntsig zoo: Kev nrawm nrawm, muaj peev xwm ua haujlwm 24-teev tas li
Tus nqi txo: Txo cov nqi zog thiab txhawb nqa tag nrho cov kab ntim khoom
Standardization: Uniform, aesthetically pleasing, thiab ruaj khov thawv tsim
Kev Tswj Xyuas Yooj Yim: Qib siab ntawm automation, kev ua haujlwm yooj yim, thiab kev cob qhia ceev rau cov neeg ua haujlwm tshiab
